Traffic Data Antenna, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

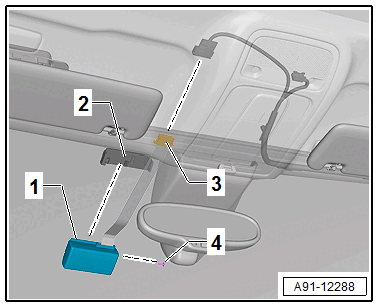

The connectors -3- of the antenna -1- is located behind the Front Roof Module -WX3-.
-- Remove the Front Roof Module -WX3-. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
-- Disconnect the connector -3-.
The antenna -1- is secured with a safety piece -4- in the bracket -2-. The bracket is glued to the windshield -2-.
-- Remove the safety piece -4- with a small screwdriver.
-- Remove the antenna -1- out of the bracket -2-.
