Near Field Communication Control Module 2 -J1170-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the telephone baseplate. Refer to TELEPHONE BASEPLATE, REMOVING AND INSTALLING .

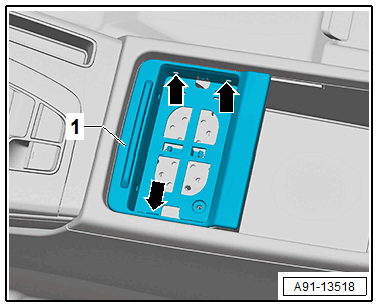

-- Release the retaining tabs -arrows-.
-- Remove the storage tray -1- upward until the connectors on the control module are accessible.
-- Disconnect the connectors.

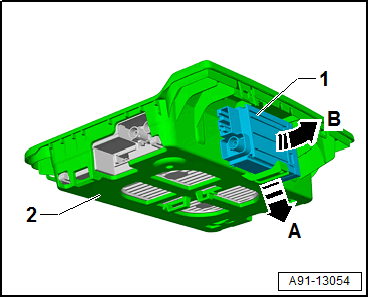

-- The control module -1- is engaged in the storage compartment -2-.
-- Press the tabs in direction of -arrow A- and pivot out the control module -1- in direction of -arrow B-.
