, Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the left rear seat belt guide. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .

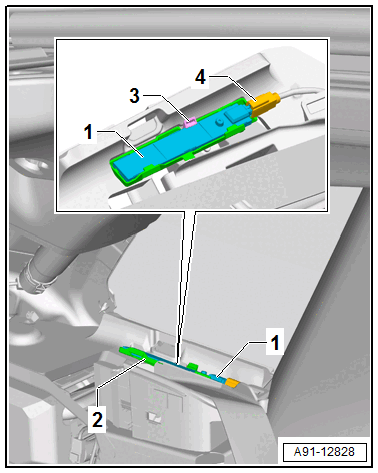

-- Disconnect the connector -4-.
-- Release the retaining tab -3-.
-- Guide out the Emergency Call Module Antenna 3 -R323- -1-.
Emergency Call Module Antenna 3 -R323-, Installing
Install in reverse order of removal.
