Component Location Overview - Antenna Systems, From Product Improvement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

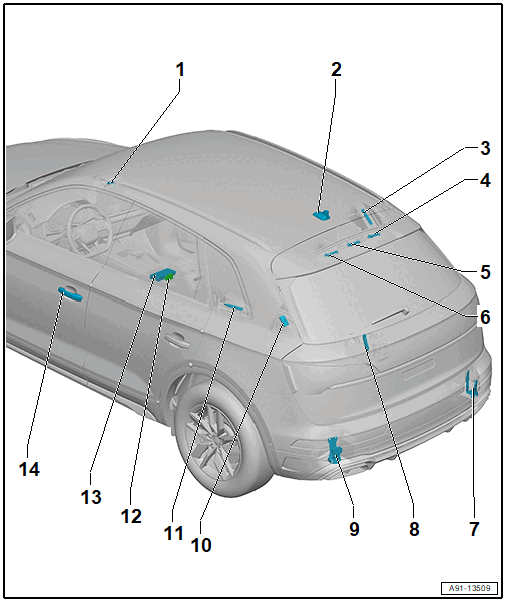

- Near Field Communication Antenna -R269-
- Removing and Installing. Refer to NEAR FIELD COMMUNICATION ANTENNA, REMOVING AND INSTALLING .
- Roof Antenna -R216-
- Bolt tightening specification: 5 Nm.
- Depending on vehicle equipment with the following integrated antennas:
- GPS Antenna -R50-
- Bluetooth Antenna -R152-, 9ZE/9ZV/9ZX
- Satellite Tuner Antenna -R172-, ER3 and QV3
- Auxiliary Heater Antenna -R182-, ER1/ER2/EZ1 and 9M9
- Emergency Call Module Antenna 2 -R322-, IV1 through IV8/JE0 through JE4
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Antenna Amplifier 3 -R112-
- Excluding ER5
- Removing and Installing. Refer to Antenna Amplifier 3 -R112-, REMOVING AND INSTALLING .
- Screw tightening specification: 2 Nm
- Wireless Data Transmission Antenna 2 -R366-
- ER5
- Removing and Installing. Refer to Wireless Data Transfer Antenna 2 -R366-, REMOVING AND INSTALLING .
- Screw tightening specification: 2 Nm
- Antenna Amplifier -R24-
- Screw tightening specification: 2 Nm
- Removing and Installing. Refer to Antenna Amplifier -R24- /Antenna Amplifier 2 -R111- /TV Antenna Amplifier 3 -R84-, REMOVING AND INSTALLING .
- TV Antenna Amplifier 3 -R84-
- Screw tightening specification: 2 Nm
- Removing and Installing. Refer to Antenna Amplifier -R24- /Antenna Amplifier 2 -R111- /TV Antenna Amplifier 3 -R84-, REMOVING AND INSTALLING .
- Antenna Amplifier 2 -R111-
- Screw tightening specification: 2 Nm
- Removing and Installing. Refer to Antenna Amplifier -R24- /Antenna Amplifier 2 -R111- /TV Antenna Amplifier 3 -R84-, REMOVING AND INSTALLING .
- LTE Antenna 3 -R330-
- LTE antenna tightening specification to the bracket: 3.5 Nm
- Bracket tightening specification to the body: 3.5 Nm
- Removing and Installing. Refer to BUMPER ANTENNAS, REMOVING AND INSTALLING .
- Wireless Data Transmission Antenna -R336-
- Screw tightening specification: 2 Nm
- ER5
- Removing and Installing. Refer to Wireless Data Transfer Antenna -R336-, REMOVING AND INSTALLING .
- Emergency Call Module Antenna -R263-
- Antenna tightening specification to the bracket: 3.5 Nm
- Bracket tightening specification to the body: 3.5 Nm
- Removing and Installing. Refer to BUMPER ANTENNAS, REMOVING AND INSTALLING .
- Windshield Antenna Suppression Filter -C18-
- Nut tightening specification: 9 Nm
- Removing and Installing. Refer to Windshield Antenna Suppression Filter -C18-, REMOVING AND INSTALLING .
- Emergency Call Module Antenna 3 -R323-
- Removing and Installing. Refer to EMERGENCY CALL MODULE ANTENNA, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
- Near Field Communication Control Module 2 -J1170-
- Removing and Installing. Refer to Near Field Communication Control Module 2 -J1170-, REMOVING AND INSTALLING .
- Near Field Communication Antenna 2 -R351-
- Removing and Installing. Refer to Near Field Communication Antenna 2 -R351-, REMOVING AND INSTALLING .
- Near Field Communication Antenna -R350-
- Removing and Installing. Refer to Near Field Communication Antenna -R350-, REMOVING AND INSTALLING .
