Lower Longitudinal Member, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front noise insulation. Refer to OVERVIEW - NOISE INSULATION .

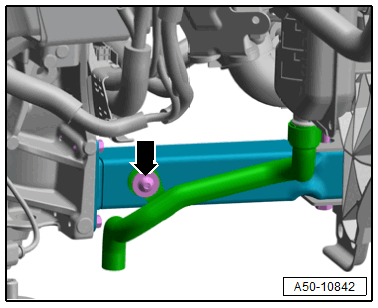

-- Versions with parking/auxiliary heater: remove the bolt -arrow- for the parking heater exhaust pipe on the right lower longitudinal member.

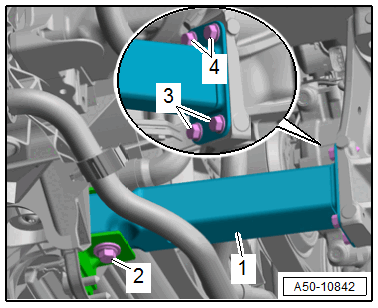

-- Remove the bolts -2, 3 and 4-.
-- Free up the wiring harness if necessary and remove the lower longitudinal member -1-.
