Plenum Chamber End Plate Upper Cover, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear cover for the fender. Refer to REAR FENDER COVER, REMOVING AND INSTALLING .
-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .
Left Side of Vehicle:

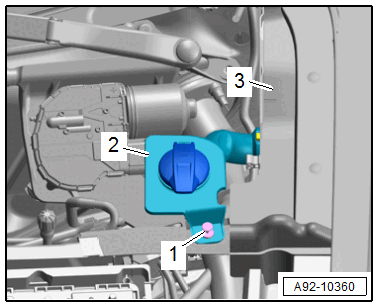

-- Remove the expanding rivet -1- and pivot the filler neck -2- upward.
Continuation:
-- Release the retainers -arrows-.
-- Remove cover -1- upward.
