Overview - Cover And Cushion

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

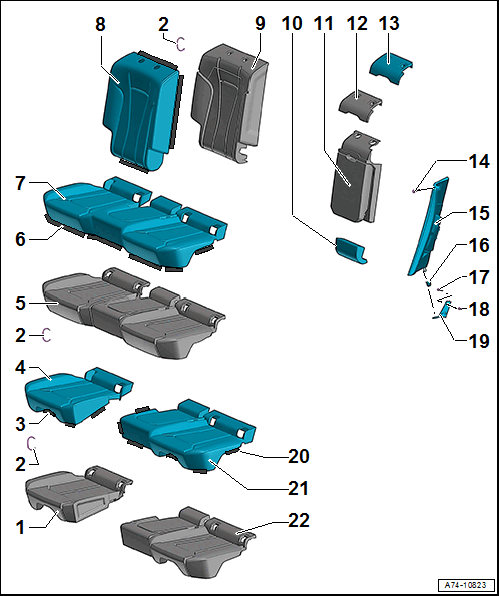

Fig 1: Exploded View Of Cover And Cushion

Courtesy of AUDI

Cushion
- 1/3 rear bench seat
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, REAR BENCH SEAT .
- Versions with seat heating: attach a new heating element when replacing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING .
Upholstery Clip
- For securing the cover to the cushion
- Always replace after removing
Molding
- Sewn into cover
- To engage the cover on the cushion wire frame
- Check for proper seating
Cover
- 1/3 rear bench seat
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, REAR BENCH SEAT .
Cushion
- 3/3 rear bench seat
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, REAR BENCH SEAT .
Molding
- Sewn into cover
- To engage the cover on the cushion wire frame
- Check for proper seating
Cover
- 3/3 rear bench seat
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, REAR BENCH SEAT .
Cover
- Rear Seat Backrest
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR SEAT BACKREST .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, REAR SEAT BACKREST .
Cushion
- Rear Seat Backrest
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR SEAT BACKREST .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, REAR SEAT BACKREST .
- Versions with seat heating: attach a new heating element when replacing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING .
Center Cushion
- With cover
- Removing and installing. Refer to CENTER CUSHION, REMOVING AND INSTALLING, BACKREST WITH PASS-THROUGH .
Backrest
- With pass-through
- Overview. Refer to OVERVIEW - BACKREST WITH PASS-THROUGH .
Foam Filler Piece
- Removing and installing. Refer to PASS-THROUGH COVER FRAME, REMOVING AND INSTALLING .
Cover
- For the upper section of backrest
- Removing and installing. Refer to PASS-THROUGH COVER FRAME, REMOVING AND INSTALLING .
Bolt
- 11 Nm
Side Cushion
- Removing and installing. Refer to SIDE CUSHION, REMOVING AND INSTALLING .
Clip
- Always replace after removing the side cushion
Bolt
- 11 Nm
Pop Rivet Nut
Bracket
- For side cushion
- Removing and installing. Refer to SIDE CUSHION BRACKET, REMOVING AND INSTALLING .
Molding
- Sewn into cover
- To engage the cover on the cushion wire frame
- Check for proper seating
Cover
- 2/3 rear bench seat
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
Cushion
- 2/3 rear bench seat
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
- Versions with seat heating: attach a new heating element when replacing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING .
