Outer Seat Frame Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the front seats all the way forward.
-- If possible, move the rear seat into the most forward position and fold the backrest forward.

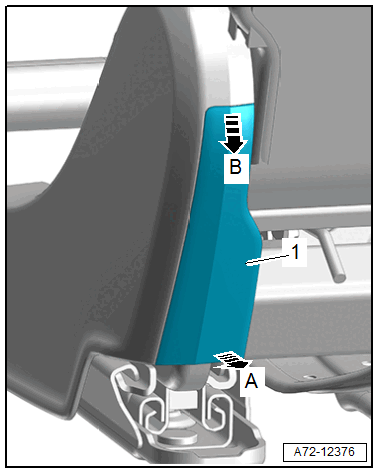

-- Unclip the lower cover -1- from the trim panel -arrow A-.
-- Remove the upper cover from the trim panel -arrow B-.

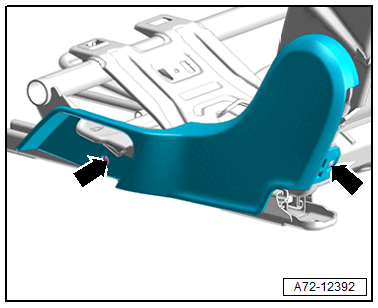

-- Remove the expanding clips -arrows-.
-- Remove the rear bench seat cover and cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT .
-- Disengage the retainer -arrow A- and fold up the lower tab on the trim panel.
-- Disengage the trim panel on the seat frame -arrow B- and guide out the folding backrest lever -1- through the gap.
-- Disengage the backrest hinge trim panel -2- from the backrest hinge and remove it.
