Headrest, Removing And Installing, Headrest With Height And Angle Adjuster: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Equipped on some models: remove the multimedia system display unit. Refer to INFOTAINMENT SYSTEM .

-- Position the backrest toward the rear at an angle.

-- Grab the rear cover -1- at the lower edge and slide upward out of the locking mechanism -arrows-.

Courtesy of AUDI

-- Move the headrest completely upward and forward.

-- Fold the rear trim -1- upward and disengage the hooks -arrows- from the front cover.

Courtesy of AUDI

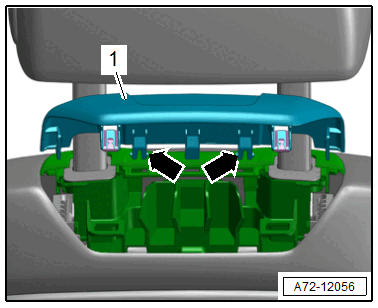

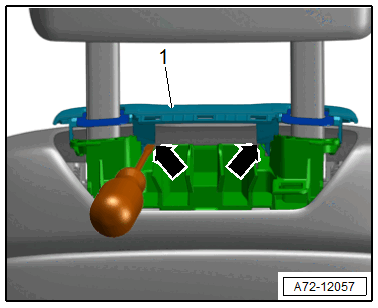

-- Loosen the front trim -1- at both retainers -arrows- using a small screwdriver and remove it.

Courtesy of AUDI

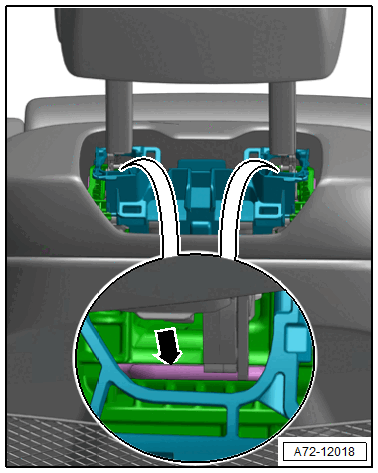

-- Push the gap covers upward. Disengage the springs -arrow- toward the rear alternating at both headrest guides, and pull the headrest base upward at the same time.

Courtesy of AUDI
