Connection Diagram - Pneumatic System, Super Sport Seat

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

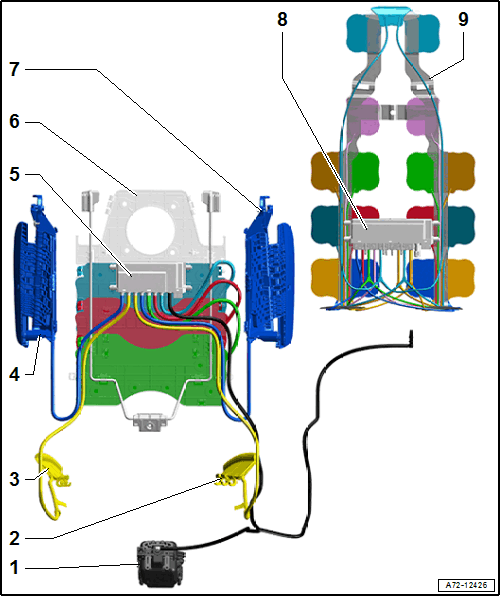

Fig 1: Connection Diagram - Pneumatic System, Comfort Seats
GWWA72-12426Courtesy of AUDI
  1. Pneumatic System Compressor
    • Driver Multi-Contour Seat Compressor -V439-, Front Passenger Multi-Contour Seat Compressor -V440-
  2. Seat Bolster Inflation Adjuster
    • Right
  3. Seat Bolster Inflation Adjuster
    • Left
  4. Backrest Bolster Inflation Adjuster
    • Left
  5. Valve Block 2
    • for lumbar support and bolster adjuster
    • Valve Block 2 in Driver Seat - N476-, Valve Block 2 in Front Passenger Seat - N478-
  6. Pneumatic Lumbar Support
    • Module with Air Cushions for Lumbar Support
  7. Backrest Bolster Inflation Adjuster
    • Right
  8. Valve Block 1
    • For massage function
    • Valve Block 1 in Driver Seat -N475-, Valve Block 1 in Front Passenger Seat -N477-
  9. Massage Mat
    • in the cushion
