Window Guide, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the B-pillar trim. Refer to DOOR B-PILLAR TRIM, REMOVING AND INSTALLING .
-- Remove the door window. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .

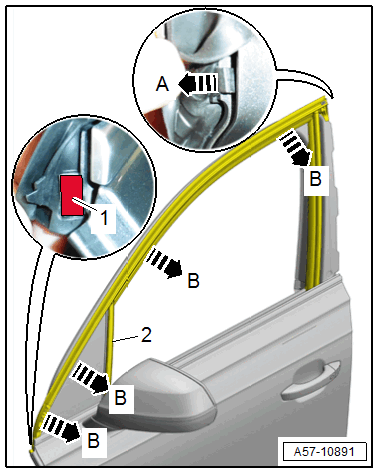

-- Free up the window guide -2- on the fixed front door window and loosen it from the front bonding -1-.
-- Starting at the front of the window guide remove first outward from the door flange -B arrows- and toward the rear from the guide -arrow A-.
