Engine, Removing From Scissor Lift Table

WARNING: This page is about a different car, the 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Lifting Tackle:3033

Fig 1: Lifting Tackle (3033)
Courtesy of AUDI
Shop Crane:VAS6100

Fig 2: Identifying Shop Crane
Courtesy of AUDI
Lift Arm Extension:VAS6101

Fig 3: Identifying Lift Arm Ext./Workshop Hoist VAS 6101
Courtesy of AUDI

Procedure

NOTE:

The engine may only be transported in the manner described and without the transmission.

Engine/transmission assembly removed and separated on Scissor Lift Table:VAS6131B . Refer to ENGINE AND TRANSMISSION, SEPARATING .
Vehicles without high-voltage system: engine secured with the Scissor Lift Table - Q7 Set - Articulated Joint Support:VAS6131/13-7 .
Vehicles with high-voltage system: engine secured with the Engine Support:T10533/1 .

-- Attach the Lift Arm Extension:VAS6101 to the Shop Crane:VAS6100 .

Courtesy of AUDI

-- Engage the Lifting Tackle:3033 at the engine lifting eyes and at the workshop crane and pretension.

Vehicle without High-Voltage System:

Courtesy of AUDI

-- Remove the Articulated Joint Support:VAS6131/13-7 from the engine.

Vehicle with High-Voltage System:

Courtesy of AUDI

-- Remove the Engine Support:T10533/1 from the engine.

Continuation for All Vehicles:

Courtesy of AUDI

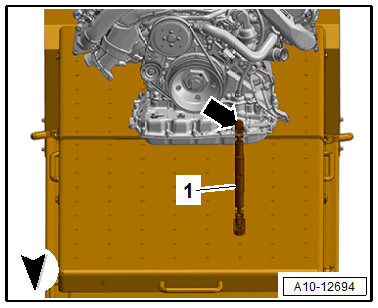

-- Remove the left and right bolts -2-. (Shown on the installed engine.)

-- Pry up the engine with the workshop crane.
