Vehicle Lifting Point, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

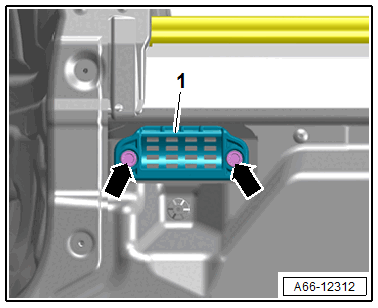

Front Vehicle Lifting Point:
 Courtesy of AUDI
|
-- Remove the bolts -arrows-.
-- Remove the vehicle lifting point -1-.

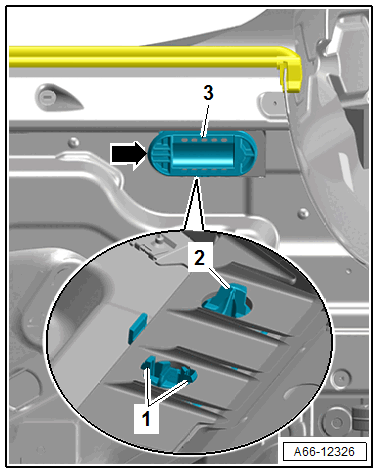

Rear Vehicle Lifting Point:
 Courtesy of AUDI
|
-- Release and catches -1- on the front -arrow- and disengage the mount -2- on the rear.
-- Remove the vehicle lifting point -3-.
