Overview - Impact Guard
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

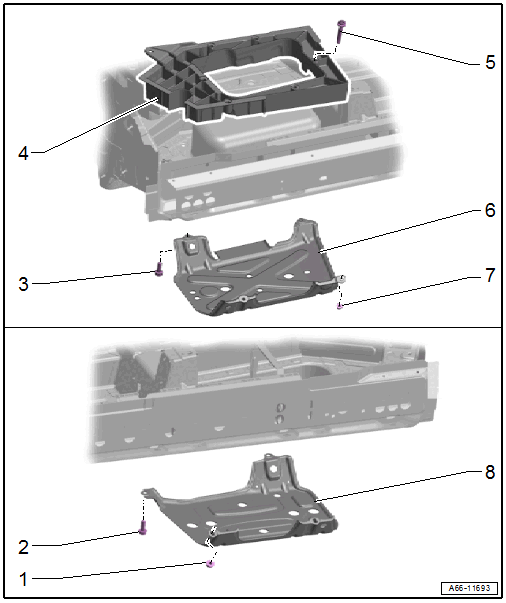

- Nut
- Quantity: 2
- 24 Nm
- Bolt
- Quantity: 2
- 24 Nm
- Bolt
- Quantity: 2
- 24 Nm
- Reinforcement
- for power electronics
- Bolt
- Quantity: 7
- 24 Nm
- Left Impact Guard
- Removing and Installing. Refer to IMPACT GUARD, REMOVING AND INSTALLING .
- Nut
- Quantity: 2
- 24 Nm
- Right Impact Guard
- Removing and Installing. Refer to IMPACT GUARD, REMOVING AND INSTALLING .
