Impact Guard, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front underbody panel. Refer to OVERVIEW - UNDERBODY TRIM PANELS .
-- Right: free up the front tunnel heat shield near the impact guard.

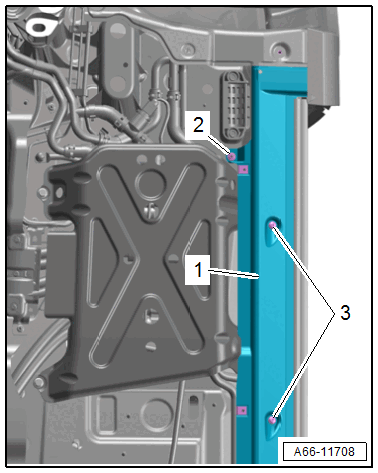

-- Remove the nut -2- and the bolts -3-.
-- Push the side underbody trim panel -1- slightly to the side.

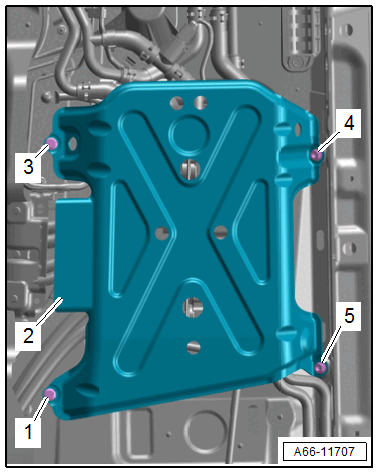

-- Remove the nuts -4 and 5- and bolts -1 and 3-.
-- Remove the impact guard -2-.
