Front Wheel Arch Trim, Removing And Installing: Installing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

-- Clean the body with Cleaning Solution and let it dry.

TIP:

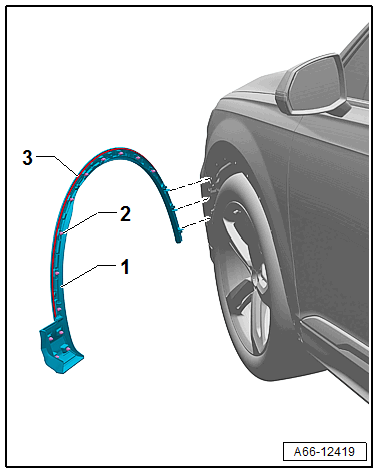

GWWA66-12419Courtesy of AUDI

Check the foam strips -3- when reinstalling the wheel arch trim -1-.

-- RS Q8: Remove the protective film from the adhesive tape in the bottom part of the fender at the wheel arch trim -1-.

-- Position the wheel arch trim -1- on the fender to the bumper cover using the clips -2-.

-- Press the wheel arch trim -1- on until it clicks into place.
