Overview - Wheel Arch Trims

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

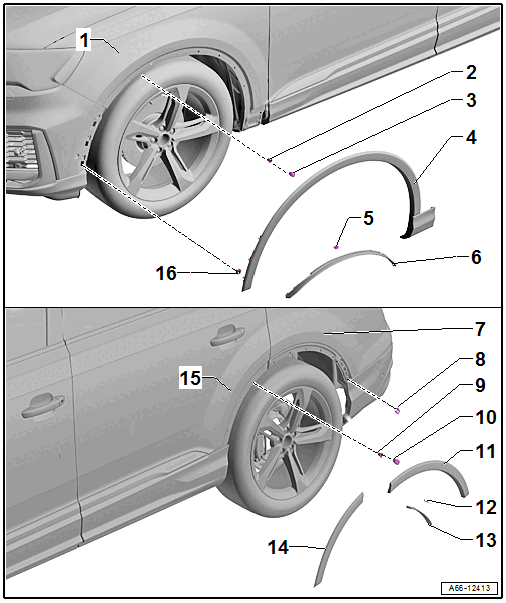

Fig 1: Exploded View Of Wheel Arch Trims

Courtesy of AUDI

Fender
Grommet
- For the clip
- Quantity: 13
- Replace the wheel cover after removal
Clip
- Quantity: 13
- Replace the wheel cover after removal
Wheel Cover
- Front
- Removing and Installing. Refer to WHEEL ARCH TRIMS, REMOVING AND INSTALLING .
Clip
- For the front wheel housing extension
- not for this model
Wheel Housing Extension
- Front
- not for this model
Side Panel
Clip
- Quantity: 2
Grommet
- For the clip
- Quantity: 5
- Replace the wheel cover after removal
Clip
- Quantity: 5
- Replace the wheel cover after removal
Wheel Cover
- Rear
- Replace after removal as long as the wheel arch trim was removed near the adhesive tape.
- Removing and Installing. Refer to REAR WHEEL ARCH TRIM, REMOVING AND INSTALLING .
Clip
- For rear wheel housing extension
- Quantity: 7
Wheel Housing Extension
- Rear
- Replace after removing
- Removing and Installing. Refer to WHEEL HOUSING EXTENSION, REMOVING AND INSTALLING .
Wheel Cover
- Door
- Replace after removing
- Removing and Installing. Refer to DOOR WHEEL ARCH TRIM, REMOVING AND INSTALLING .
Door
- Rear
Clip
- Quantity: 3
