Windshield Wiper Motor -V-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the windshield wiper arms. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

LHD vehicle

Courtesy of AUDI

-- Remove the expanding rivets -1-.

-- Pivot the filler neck -2- upward but do not remove the washer fluid reservoir and the body opening -3-.

Continuation for all vehicles

Courtesy of AUDI

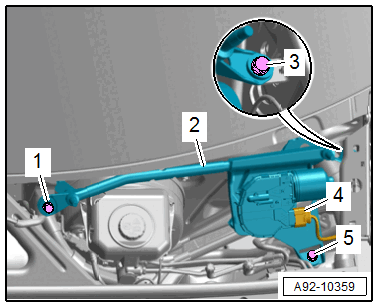

-- Remove the bolts -1, 3 and 5-.

-- Remove the windshield wiper frame -2- with the linkage and remove the windshield wiper motor from the plenum chamber.

-- Disconnect the connector -4-.
