Windshield Washer Pump Control Module -J1100-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

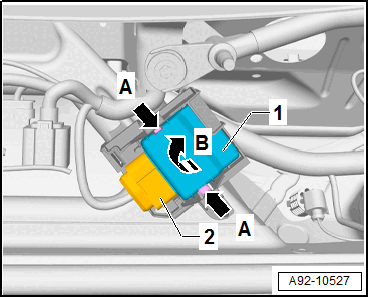

-- Release and disconnect the connector -2-.
-- Loosen the catches -A arrows-.
-- Remove the control module -1- in -direction of arrow B- from the bracket.
