Windshield Washer Fluid Level Sensor, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the washer fluid reservoir until the windshield washer fluid level sensor is accessible. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .

-- Place a drip tray under the washer fluid reservoir.

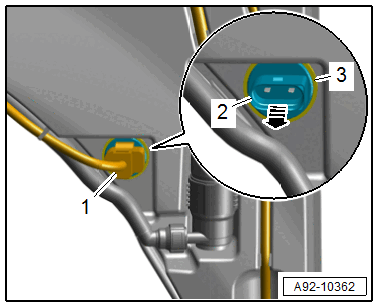

-- Disconnect the connector -1-.

GWWA92-10362Courtesy of AUDI

-- Remove the Windshield Washer Fluid Level Sensor -G33- -item 2- from the washer fluid reservoir.
