Washer Fluid Reservoir, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

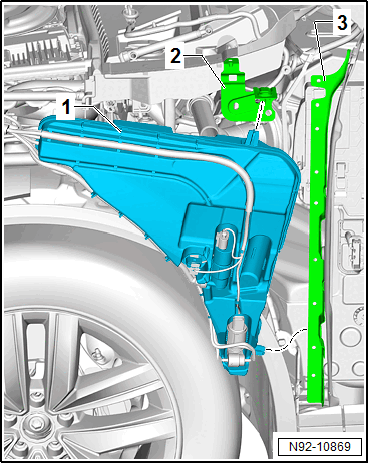

-- Pay attention when inserting the washer fluid reservoir -1- that the securing tabs engage in the mounts -2- and -3-.
TIP:
To prevent mixing up washer fluid hose connections on the Windshield Washer Pump -V5-, the connections on the pump and the hose lines are color coded. Hose connector pieces must be connected to the corresponding colored pump connections during installation.
