Rear Window Washer Pump, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

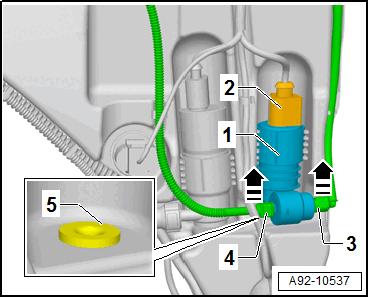

-- Remove the washer fluid reservoir until the Rear Window Washer Pump -V13- is accessible. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
-- Disconnect the connector -2-.
-- Place a drip tray under the washer fluid reservoir.
-- Open the clips -arrows- and remove the washer fluid hoses -3 and 4- from the windshield washer pump -1-.
-- Remove the windshield washer pump upward from the washer fluid reservoir.
