Washer Nozzle For Laser Distance Regulation Control Module, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the lock carrier cover. Refer to OVERVIEW - BUMPER COVER .
-- Remove the upper air guide. Refer to OVERVIEW - RADIATOR/RADIATOR FAN - 3.0L , OVERVIEW - RADIATOR/RADIATOR FAN - 4.0L .

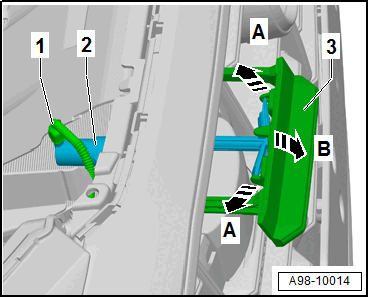

-- Release the clamp on the washer fluid hose connecting piece -1-.
-- Remove the washer fluid hose from the washer nozzle -2-.
-- Remove the washer nozzle -2- on the cap -3- all the way forward from the radiator grille and hold it in this position.
-- Push the retaining tabs on the cap -3- apart -A arrows-.
-- Remove the cap -3- from the washer nozzle -2- -arrow B-

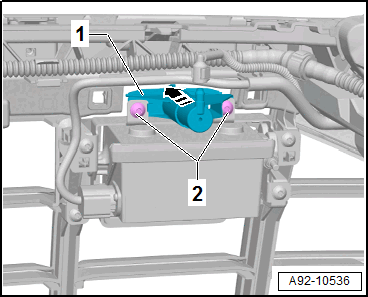

-- Remove the bolts -2-.
-- Remove the washer nozzle -1- forward -arrow-.
