Headlamp Washer System Washer Nozzle, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the cover for the headlamp washer system spray nozzle. Refer to OVERVIEW - BUMPER COVER .

-- Remove the center end panel. Refer to OVERVIEW - BUMPER COVER .

-- Vehicles with side auxiliary radiator: remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Vehicles with side auxiliary radiator: remove the auxiliary radiator air duct. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING - 3.0L , CHARGE AIR COOLER, REMOVING AND INSTALLING - 4.0L .

-- Place a cloth underneath the coupling rod to catch any fluid still leaking out.

Courtesy of AUDI

-- Place a drip tray under the nozzle holder.

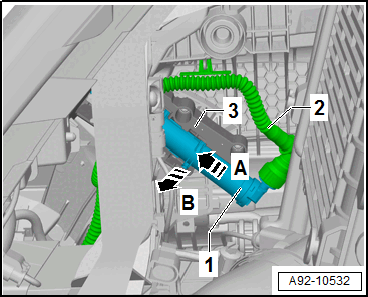

-- Remove the washer fluid hose -2- by pressing the release buttons.

-- Push the washer nozzle with lift cylinder -1- forward out of the bracket retainers -3- -direction of arrow A-.

-- Remove the washer nozzles with lift cylinder -1- downward -direction of arrow B-.
