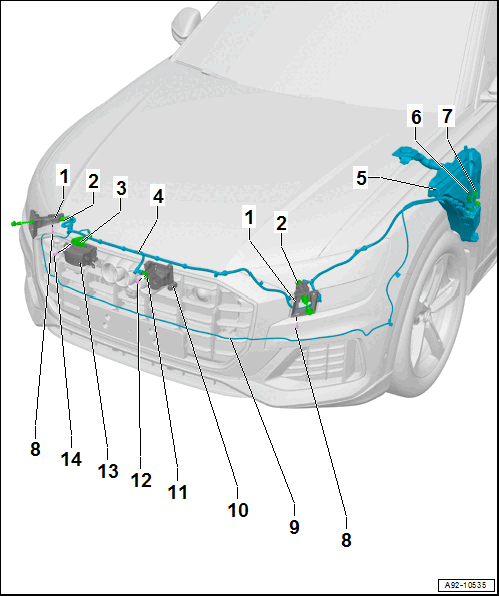

Overview - Headlamp Washer System
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- For the headlamp washer system spray nozzle
- Headlamp Washer System Washer Nozzle
- Are already adjusted by the manufacturer and must not be adjusted after installation.
- Removing and installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE, REMOVING AND INSTALLING .
- Washer Nozzle for Laser Distance Regulation Control Module
- Removing and installing. Refer to WASHER NOZZLE FOR LASER DISTANCE REGULATION CONTROL MODULE, REMOVING AND INSTALLING .
- Washer Fluid Hose
- For headlamp washer system washer nozzles
- Equipped on some models
- For night vision system camera washer nozzle
- Washer Fluid Reservoir
- Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Headlamp Washer System Pump -V11-
- Removing and installing. Refer to Headlamp Washer System Pump -V11-, REMOVING AND INSTALLING .
- Rear Window Washer Pump -V13-
- For laser distance regulation control module washer nozzle
- Black hose connection: on black connection
- Removing and installing. Refer to REAR WINDOW WASHER PUMP, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- 2.5 Nm
- Washer Fluid Hose
- For laser distance regulation control module washer nozzle
- Night Vision System Camera -R212-
- Equipped on some models
- Night Vision System Camera -R212- Washer Nozzle
- Removing and installing. Refer to Night Vision System Camera -R212- WASHER NOZZLE, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 2.5 Nm
- Laser Distance Regulation Control Module -J1122-
- Equipped on some models
- Bolt
- Quantity: 2
- 2.5 Nm
