Steering Column, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

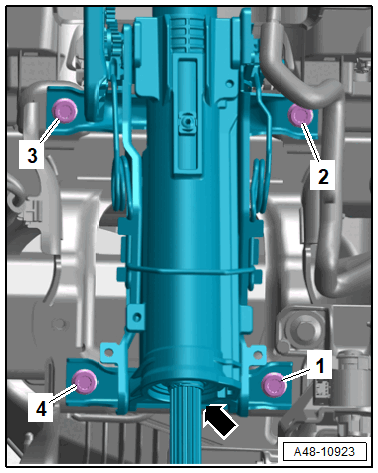

-- Bring the steering column into the installation position by engaging the mounting hooks -1- on the central tube -2- -arrow-.
TIP:
The installation position of the version with a mechanical steering column is shown.
-- Install the bolts loosely and then tighten. Refer to Figure.
-- Install the steering intermediate shaft. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .
- Calibrate the Steering Angle Sensor -G85-. Refer to Steering Angle Sensor -G85- BASIC SETTING .
- Versions with power steering column: if the steering column is replaced, perform the basic setting for the Power Adjustable Steering Column Control Module -J866-. Refer to DIAGNOSTIC ENTRIES .
