Drive Axle, Disassembling And Assembling, Inner CV Joint: Notes

Special tools and workshop equipment required

• Press Plate:VW401
  Fig 1: Press Plate

  Courtesy of AUDI
• Press Plate:VW402
  Fig 2: Press Plate VW402

  Courtesy of AUDI
• Press Piece - Rod:VW409
  Fig 3: Identifying Press Piece - Rod VW409

  Courtesy of AUDI
• Press Piece - Multiple Use:VW412
  Fig 4: Identifying Press Piece - Multiple Use VW412

  Courtesy of AUDI
• CV Joint Press Sleeve:VW522
  Fig 5: CV Joint Press Sleeve VW522

  Courtesy of AUDI
• Press Block:40-204A
  Fig 6: Identifying Press Block 40 - 204 A

  Courtesy of AUDI
• Locking ring pliers, commercially available
• Refer to the appropriate Electronic Parts Information for the sealing compound.

Inner CV Joint, Removing

-- Clamp the drive axle horizontally in a vise with protective covers.

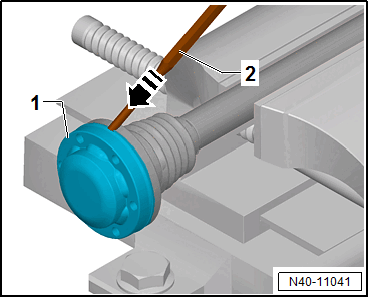

-- Drive the cover -1- down with a copper or brass drift -2- in the -direction of the arrow-.

Courtesy of AUDI

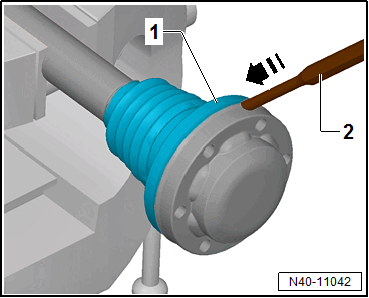

-- Drive the cap -1- down with a copper or brass drift -2- in -direction of the arrow-.

Courtesy of AUDI

-- Only open and remove the "small" CV boot clamp.

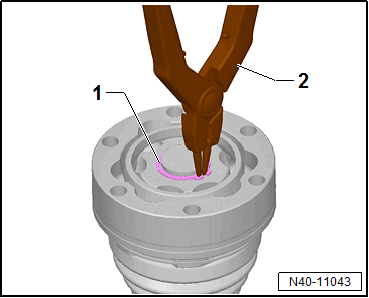

-- Remove the circlip -1- with the locking ring pliers -2-.

Courtesy of AUDI

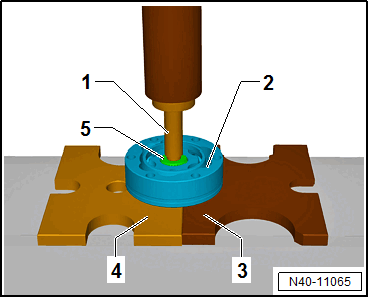

-- Press the drive axle -5- off the inner CV joint -2-.

Courtesy of AUDI

1. Press Piece - Rod:VW409
2. Inner CV Joint
3. Press Plate:VW401
4. Press Plate:VW402
5. Drive Axle

-- Remove the CV boot from the drive axle.
