OVERVIEW - STABILIZER BAR, WITH SWAY STABILIZATION /Sway Stabilization Control Module -J924- IN RIGHT FRONT WHEEL HOUSING
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

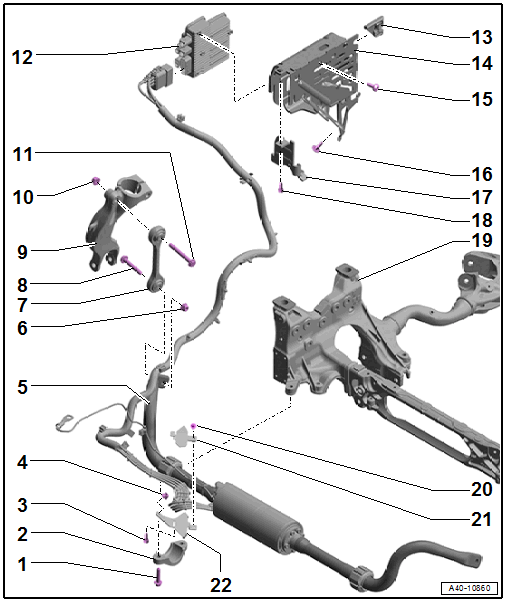

Fig 1: Exploded View Of Stabilizer Bar, With Sway Stabilization /Sway Stabilization Control Module -J924- In Right Front Wheel Housing
- Bolt
- Always replace after removing
- Remove and tighten evenly alternating from side to side.
- 55 Nm
- Clamp
- Bolt
- 8 Nm
- Nut
- 8 Nm
- Stabilizer Bar with Sway Stabilization
- With Left Front Suspension Stabilization Actuator -V634-
- With Right Front Suspension Stabilization Actuator -V635-
- with rubber bushing
- The rubber bushing cannot be replaced separately.
- When removing and installing the stabilizer bar with sway stabilization the wiring harness may not be removed from the stabilizer bar with sway stabilization. The connectors may not be removed.
- Stabilizer bar with sway stabilization, removing and installing. Refer to STABILIZER BAR, REMOVING AND INSTALLING, WITH SWAY STABILIZATION .
- Nut
- Always replace after removing
- 60 Nm +90°
- Coupling Rod
- Removing and installing. Refer to COUPLING ROD, REMOVING AND INSTALLING .
- Bolt
- Always replace after removing
- Shock Absorber Fork
- Removing and installing. Refer to SHOCK ABSORBER FORK, REMOVING AND INSTALLING .
- Nut
- Always replace after removing
- 60 Nm +90°
- Bolt
- Always replace after removing
- Sway Stabilization Control Module -J924-
- Component location on vehicles without a connector in the wiring harness in the right front wheel housing on the top of the A-pillar
- Removing and installing. Refer to Sway Stabilization Control Module -J924-, REMOVING AND INSTALLING .
- Clip
- Bracket
- For Sway Stabilization Control Module -J924-
- Bolt
- 8 Nm
- Bolt
- 8 Nm
- Reinforcement
- Bolt
- 8 Nm
- Subframe
- Bolt
- 20 Nm
- Bracket
- For the wiring harness
- Bracket
- For the wiring harness
