GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with 48V System (PR Number VH2/VH3)

The 12V and 48V systems reinforce each other via the Voltage Converter, 48 V/12 V -A7-. As a result, the system can only be de-energized when the 48V system was de-energized beforehand.

-- De-energize the 48V system. Refer to 48V SYSTEM, DE-ENERGIZING .

Continuation for all vehicles

-- Switch off the ignition.

-- Adjust the right front seat as far to the rear as possible. Use the entire adjustment range of the seat adjustment for this.

-- Remove the floor mat from the footwell.

-- Release the cover -1- upward -arrow A- and remove toward the center of the vehicle -arrow B-.

Courtesy of AUDI

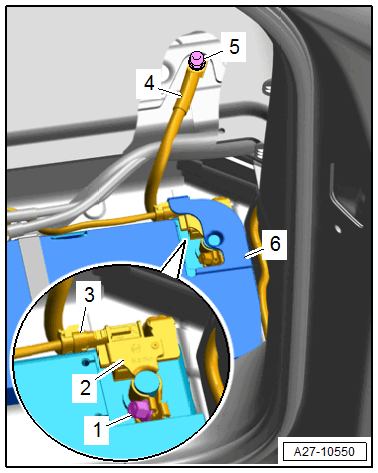

-- Open the cover -6- over the battery negative terminal.

Courtesy of AUDI

-- Loosen the nut -1- several turns and remove the battery ground cable clamp from the battery terminal.

-- Disconnect the connector -3-.

-- Slightly lift the carpet in the area of the nut -5-.

-- Remove the nut -5- and ground cable -4- with the Battery Monitoring Control Module -J367- -item 2-.
