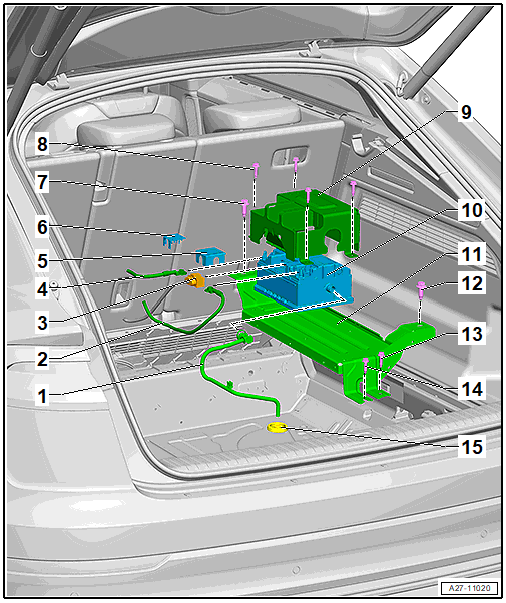

Overview - Absorption Catalytic Converter
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Pressure Balance Hose
- Positive Cable
- Terminal 40
- De-energizing. Refer to 48V SYSTEM, DE-ENERGIZING .
- 20 Nm
- Connector
- Ground Wire
- Terminal 41
- De-energizing. Refer to 48V SYSTEM, DE-ENERGIZING .
- 20 Nm
- Positive Cable Cap
- Ground Cable Cap
- Bolt
- 70 Nm
- Bolt
- Quantity: 4
- 20 Nm
- Protective Housing Upper Section
- Removing and installing. Refer to 48V Vehicle Electrical System Storage Capacitor -C31-, REMOVING AND INSTALLING .
- 48V Vehicle Electrical System Storage Capacitor -C31-
- Removing and installing. Refer to 48V Vehicle Electrical System Storage Capacitor -C31-, REMOVING AND INSTALLING .
- Absorption Catalytic Converter Bracket
- Removing and installing. Refer to ABSORPTION CATALYTIC CONVERTER SUPPORT, REMOVING AND INSTALLING .
- Bolt
- 70 Nm
- Bolt
- 20 Nm
- Bolt
- 20 Nm
- Grommet
