Explanation Of Test Results
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The layout of the printed test results can vary depending on the software version.
The printed test results are required for warranty claims.

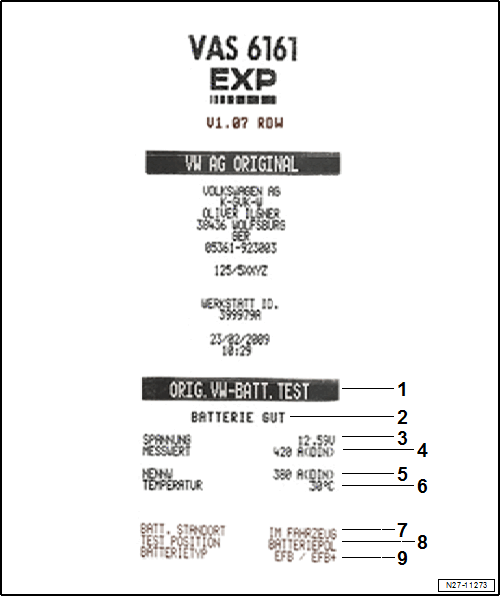

- Type of test.
- Battery test result.
- Measured voltage
- Measured cold start value.
- Cold start nominal value set on the tester
- Measured battery temperature
- Batter installed location
- Location of the battery terminal set at the tester
- Selected battery.
