Spoiler, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bolts -arrows-.

GWWA63-11092Courtesy of AUDI

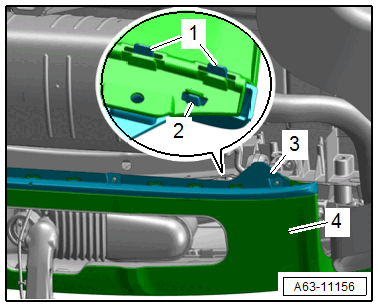

-- Release the catches -1 and 2- and remove spoiler -3- from the bumper cover lower section -4-.

GWWA63-11156Courtesy of AUDI
