Overview - Impact Member, Equipment Variations

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

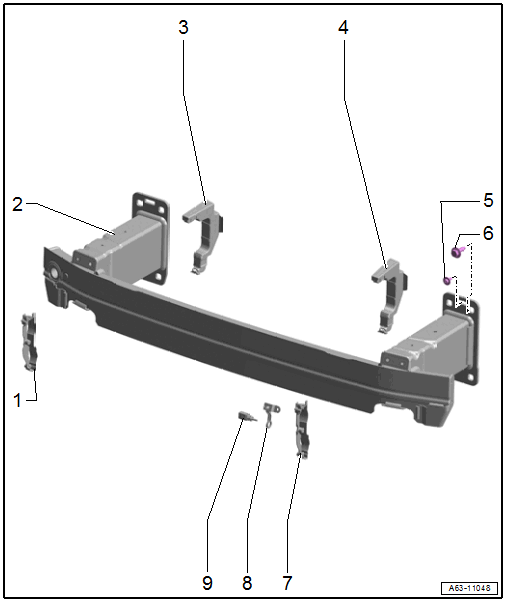

Fig 1: Exploded View Of Impact Member, Equipment Variations

Courtesy of AUDI

Air Duct Front Section
- Right
- Clipped into the rear section air guide
Impact Member
- There are different versions. Refer to the appropriate Parts Information.
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING, EQUIPMENT VARIATIONS .
Air Duct Rear Section
- Right
Air Duct Rear Section
- Left
Bolt
- 4.5 Nm
- For securing the impact member to the lock carrier
Bolt
- 60 Nm
- Quantity: 4
Air Duct Front Section
- Left
- Clipped into the rear section air guide
Bracket
- For Outside Air Temperature Sensor -G17-
- Versions. Refer to the appropriate Parts Information.
- Removing and Installing. Refer to Outside Air Temperature Sensor -G17- BRACKET, REMOVING AND INSTALLING .
Outside Air Temperature Sensor -G17-
- Removing and Installing. Refer to OUTSIDE AIR TEMPERATURE SENSOR -G17-, REMOVING AND INSTALLING .
