Impact Guard, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the bumper cover end plate. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .

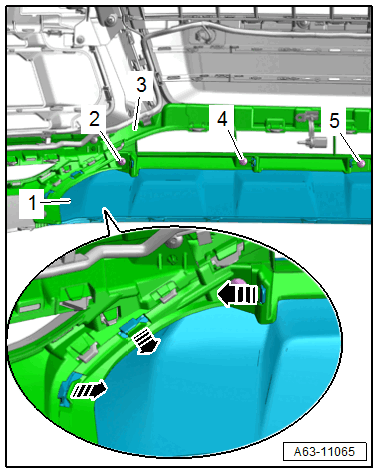

-- Remove the bolts -2, 4 and 5-.
-- Release the catches -arrows- remove the impact guard -1- toward the front from the bumper cover -3-.
