Side Air Duct, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the impact guard. Refer to IMPACT GUARD, REMOVING AND INSTALLING .

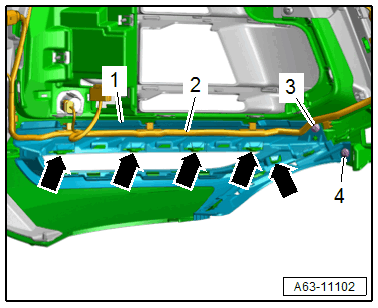

-- Remove the bolts -3 and 4-.
-- Free up the wiring harness -2-.
-- Open the catches -arrows- and remove the side air duct -1-.
