Side Air Duct, Removing And Installing, S Line: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front section of the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING, FRONT SECTION .
-- Vehicles with side auxiliary radiator: remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

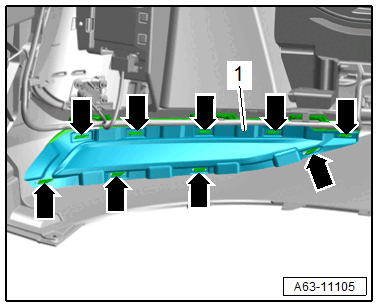

-- Open the retainers -arrows- and remove the cover -1-.

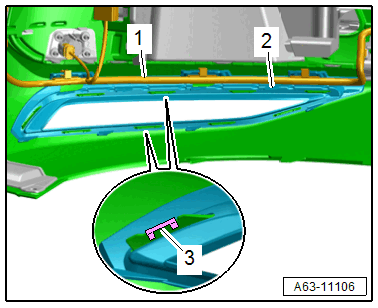

-- Free up the wiring harness -1-.
-- Remove the clips -3- and the side air duct -2-.
