Center Air Duct, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the side air duct. Refer to SIDE AIR DUCT, REMOVING AND INSTALLING .

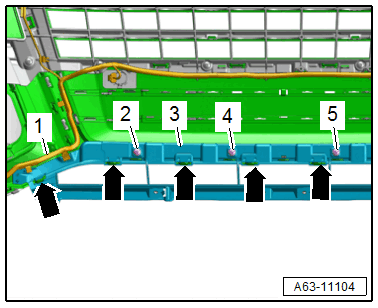

-- Free up the wiring harness -1-.
-- Remove the bolts -2, 4 and 5-.
-- Release the catches -arrows- and remove the air duct in the center -3-.
