Air Intake Grille Cap, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the air intake grille. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING .

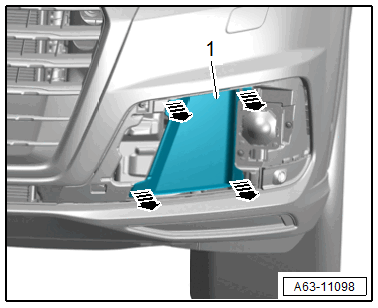

Air Intake Grille Cap:
-- Unlock the catches -arrows- and remove the cap -1- toward the front.

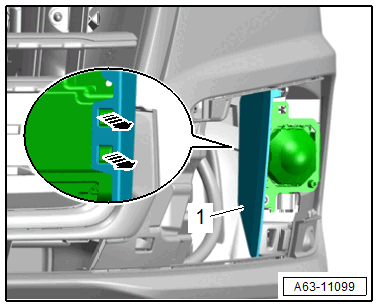

Side Air Intake Grille Cap:
-- Unlock the catches -arrows- and remove the cap -1- toward the front.
