All-Wheel Drive Control Module -J492-, REMOVING AND INSTALLING, VEHICLES WITH "quattro ultra"

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Component location of the All-Wheel Drive Control Module -J492-. Refer to the appropriate Service Information .

All-Wheel Drive Control Module -J492- -5-, Removing and Installing. Refer to CONTROL MODULE, REMOVING AND INSTALLING .

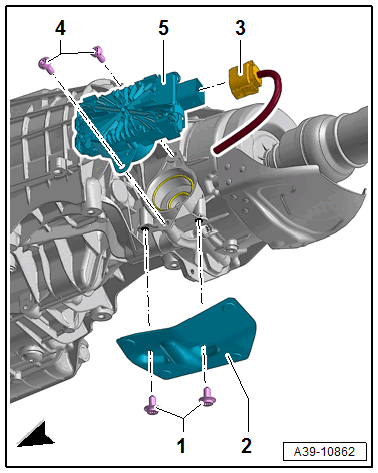

Fig 1: All-Wheel Drive Control Module -J492-, Vehicles with Final Drive 0B0 "quattro ultra"

Courtesy of AUDI
