Overview - Rear Final Drive, AUDI Q7 And Q8
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

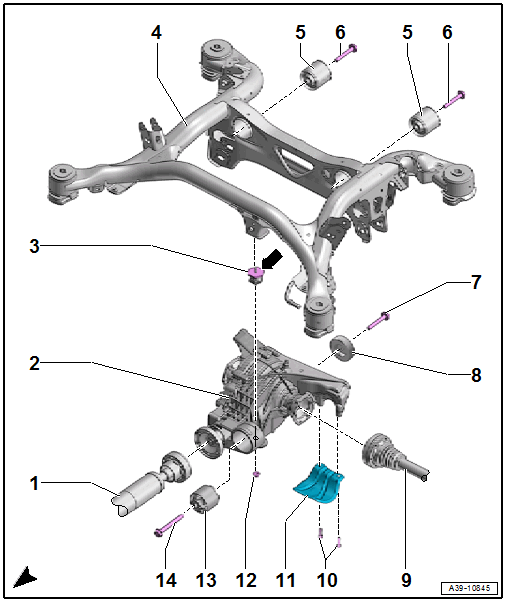

Rear Final Drive
- Driveshaft
- Removing and Installing. Refer to DRIVESHAFT, REMOVING AND INSTALLING .
- Removing and installing on the rear final drive. Refer to DRIVE SHAFT, REMOVING FROM REAR FINAL DRIVE AND INSTALLING .
- Rear Final Drive
- Refer to FINAL DRIVE, REMOVING AND INSTALLING
- Auxiliary Mount
- 20 Nm
- Not installed on all versions
- Tightening at the subframe is only permitted via the upper hex fitting -arrow-
- To tighten the nut OVERVIEW - REAR FINAL DRIVE, AUDI Q7 AND Q8, counterhold at the lower hex fitting
- Subframe
- Removing and Installing. Refer to OVERVIEW - SUBFRAME .
- Rear Bonded Rubber Bushing
- Removing and Installing. Refer to OVERVIEW - SUBFRAME .
- Bolt
- 70 Nm + 180°
- Always replace.
- There are different bolt lengths. Refer to the appropriate Electronic Parts Information for the allocation.
- Bolt
For vibration damper
- 55 Nm + 90°
- Always replace.
- Vibration Damper
- Not installed on all versions
- Installation position: the inner protruding collar points toward the final drive
- Drive Axle
- Removing and Installing. Refer to DRIVE AXLE, REMOVING AND INSTALLING .
- Bolt
- 23 Nm
- Not installed on all versions
- Heat Shield
Different versions
- Assembly from below with the two bolts; tightening specification. Refer to OVERVIEW - REAR FINAL DRIVE, AUDI Q7 AND Q8.
- Assembly on the side with three bolts; tightening specification Refer to Fig 2
- Nut
- 20 Nm
- Not installed on all versions
- Front Bonded Rubber Bushing
- Removing and Installing. Refer to BONDED RUBBER BUSHING, REMOVING AND INSTALLING .
- M14 Bolt
- 130 Nm + 180°
- Always replace.
Bolts arrows for heat shield A
- 23 Nm
- Not installed on all versions
