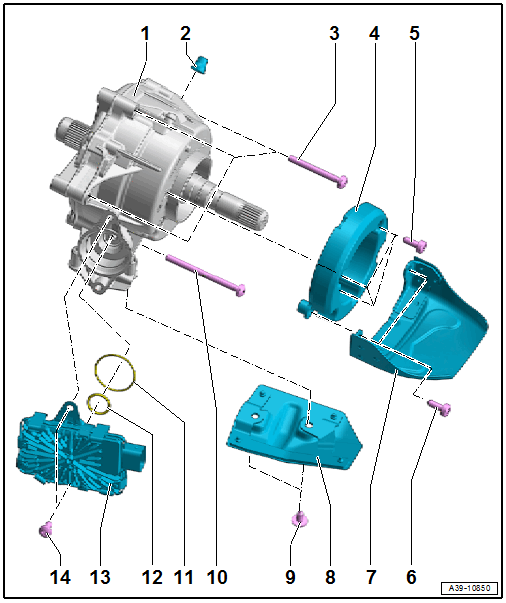

Overview - All-Wheel Drive Clutch
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- All-Wheel Drive Clutch
- Removing and Installing. Refer to ALL-WHEEL DRIVE CLUTCH, REMOVING AND INSTALLING .
- Additional work is necessary when replacing the all-wheel drive clutch. Refer to ADDITIONAL WORK WHEN REPLACING ALL-WHEEL DRIVE CLUTCH .
- Refer to COMPONENT LOCATION OVERVIEW - SEALS ON ALL-WHEEL DRIVE CLUTCH "quattro ultra"
- Bleeder
- Bolt
- 8 Nm +180°
- Replace
- M8 X 70
- Quantity: 3
- Balance Weight
- Installed depending on the version
- Bolt
- 28 Nm
- Installed depending on the version
- Bolt
- 28 Nm
- Installed depending on the version
- Heat Shield
- For driveshaft
- Installed depending on the version
- Heat Shield
- for All-Wheel Drive Control Module --
- Installed depending on the version
- Bolt
- 8 Nm
- Installed depending on the version
- Bolt
- 8 Nm +180°
- Replace
- M8 X 100
- O-Ring
- for All-Wheel Drive Control Module --
- Replace
- O-Ring
- for All-Wheel Drive Control Module --
- Replace
- All-Wheel Drive Control Module -J492-
Integrated in the All-Wheel Drive Control Module -- :
- All-Wheel Drive Clutch Actuator -V622-
- All-Wheel Drive Clutch Position Sensor -G969-
- Additional work when replacing the control module is necessary. Refer to ADDITIONAL WORK FOR VEHICLES WITH "quattro ultra" .
- Removing and Installing. Refer to CONTROL MODULE, REMOVING AND INSTALLING .
- Bolt
- 21 Nm
