All-Wheel Drive Clutch Torque, Checking

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

The torque is only checked when it suggested based on "Guided Fault Finding".

Special tools and workshop equipment required

Socket - 36mm:T10125 (1/2 inch)

Courtesy of AUDI
36 mm Socket, 3/4 inch, commercially available
or
3/4 inch adapter for 1/2 inch
Counter Holder:T40345

Courtesy of AUDI
Torque Wrench 1332 40-200Nm:V.A.G 1332

Fig 1: Identifying Torque Wrench 1332
Courtesy of AUDI
Torque Wrench 80-400Nm:V.A.G 1576

Fig 2: Identifying Torque Wrench V. A. G 1576
Courtesy of AUDI
Vehicle Diagnostic Tester

Courtesy of AUDI

Only check the torque if "Guided Fault Finding" specifically requests it.

-- Remove the driveshaft. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Connect the Vehicle Diagnostic Tester and switch on the ignition.

-- On the Vehicle Diagnostic Tester, select the function 22 - Actuator test under Guided Functions in the 22 - AWD electronics folder.

-- Start the selected program and follow the instructions in the display of the Vehicle Diagnostic Tester.

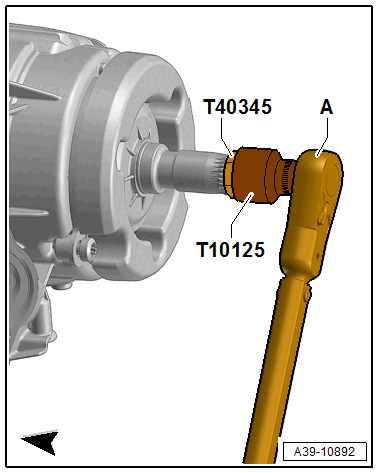

-- Mount the tool as shown to check the torque of the all-wheel drive clutch.

Courtesy of AUDI

A - Torque Wrench 1332 40-200Nm:V.A.G 1332 and Torque Wrench 80-400Nm :V.A.G 1576

Use the Torque Wrench 80-400Nm:V.A.G 1576 to check higher torques.
To do so, a 36 mm Socket3/4 inch (commercially available) or a 3/4 inch adapter for 1/2 inch is required.

-- Install the driveshaft. Refer to the appropriate Service Information .
