Tail Pipe Trim, Removing And Installing, Sq8: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

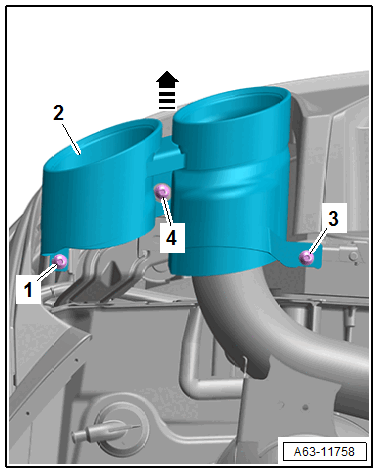

-- Remove the bolts -1, 3 and 4-.

Courtesy of AUDI

-- Remove the trim -2- for the tail pipe toward the rear and remove it from the mount -arrow-.
