Tail Pipe Trim Mount, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- If equipped, free up the wiring harness -1-.

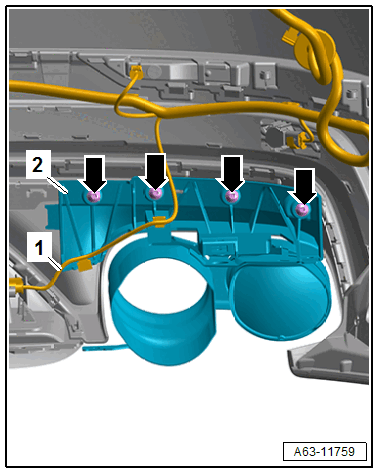

GWWA63-11759Courtesy of AUDI

-- Remove the bolts -arrows-.

-- Remove the tail pipe trim mount -2-.
