Rear Diffuser, Removing And Installing, RS Q8: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect and free up the connectors in the area of the rear diffuser.
-- Remove the end plate. Refer to END PANEL, REMOVING AND INSTALLING .

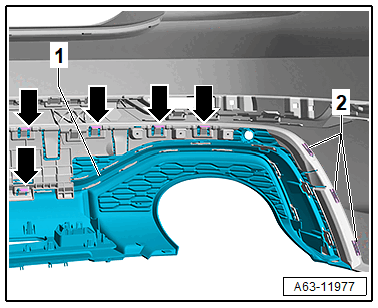

-- Remove the left and right clamps -2-.
-- Release the retainers -arrows-.
-- Remove the rear diffuser -1-.
-- If the rear diffuser is to be replaced, also remove the following components:
- If equipped, the Power Rear Lid Opening Sensor -G750- /Power Rear Lid Opening Sensor 2 -G760-. Refer to Power Rear Lid Opening Sensor -G750- /Power Rear Lid Opening Sensor 2 -G760-, REMOVING AND INSTALLING .
- If equipped, the Power Rear Lid Opening Control Module -J938-. Refer to Power Rear Lid Opening Control Module -J938-, REMOVING AND INSTALLING .
- Trim Molding. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, RS Q8 .
- Spoiler. Refer to SPOILER, REMOVING AND INSTALLING .
