Overview - Impact Member

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

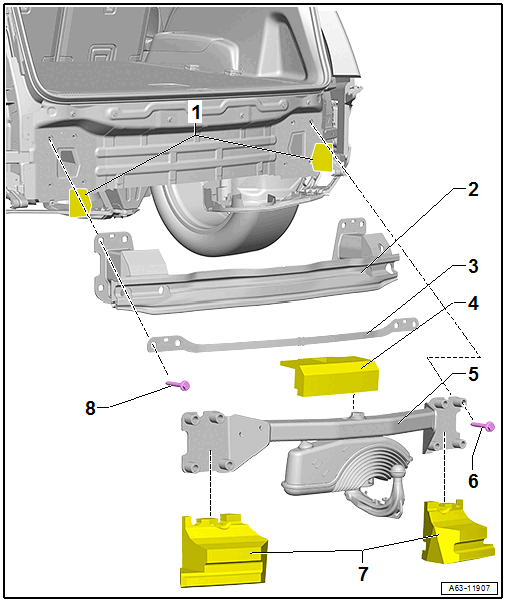

Fig 1: Exploded View Of Bumper Carrier

Courtesy of AUDI

Foam Seal
Impact Member
- For vehicles without a trailer hitch
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING, WITHOUT TRAILER HITCH .
Crossmember
- For vehicles with a high-voltage system
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING, WITHOUT TRAILER HITCH .
Center Filler Piece
Impact Member
- For vehicles with a trailer hitch
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING, WITH TRAILER HITCH .
Bolt
- Quantity: 8
- 110 Nm
Outer Filler Piece
Bolt
- Quantity: 8
- 70 Nm
