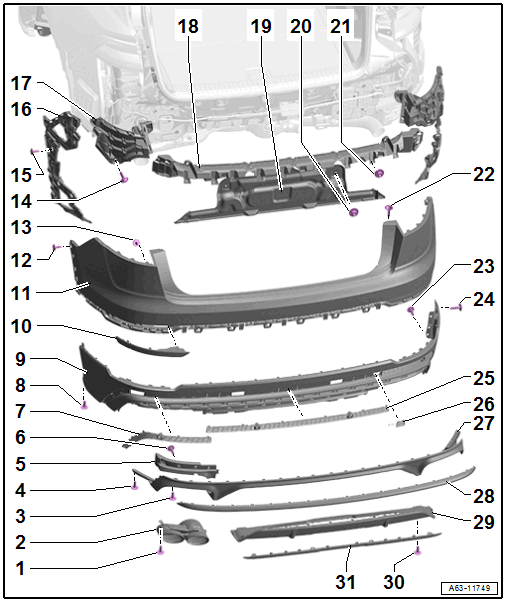

Overview - Bumper Cover, Sq8

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

Bolt
- Quantity: 2
- 3 Nm
Tail Pipe Trim
- Removing and Installing. Refer to TAIL PIPE TRIM, REMOVING AND INSTALLING, SQ8 .
Bolt
- 3 Nm
Bolt
- Quantity: 2
- 2.5 Nm
Mount
- For tail pipe trim
- Removing and Installing. Refer to TAIL PIPE TRIM MOUNT, REMOVING AND INSTALLING .
Bolt
- Quantity: 4
- 3.5 Nm
Bumper Cover Trim
- Side
- Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, SIDE .
Bolt
- Quantity: 2
- 2.5 Nm
Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
Rear Reflector
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING .
Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Bolt
- 2.5 Nm
Bolt
- 1.5 Nm
Bolt
- Quantity: 3
- Tightening sequence. Refer to Figure.
Bolt
- Quantity: 6
- Tightening sequence. Refer to Figure.
Bumper Cover Mount
- Side
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, SIDE .
Bumper Cover Mount
- Upper
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, TOP .
Bumper Cover Mount
- Lower
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
Bumper Cover Mount
- Center
- Removing and Installing. Refer to CENTER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Nut
- Quantity: 3
- 6 Nm
Nut
- Quantity: 5
- 4 Nm
Bolt
- 2.5 Nm
Bolt
- 2.5 Nm
Bolt
- 2.5 Nm
Bumper Cover Trim
- Center
- Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, CENTER .
Cover
- For the towing eye
Spoiler
- Removing and Installing. Refer to SPOILER, REMOVING AND INSTALLING .
Bumper Cover Trim Molding
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, S LINE, SQ8 .
Rear Diffuser
- Removing and Installing. Refer to REAR DIFFUSER, REMOVING AND INSTALLING .
Bolt
- Quantity: 4
- 3 Nm
Spoiler Lip
- Removing and Installing. Refer to SPOILER, REMOVING AND INSTALLING .
