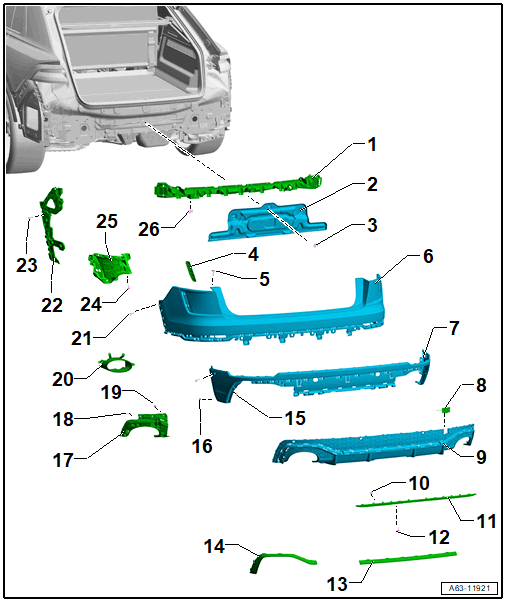

Overview - Bumper Cover, RS Q8

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

Bumper Cover Mount
- Center
- Removing and Installing. Refer to CENTER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Bumper Cover Mount
- Lower
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
Nut
- Quantity: 3
- 6 Nm
Trim
- Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, RS Q8 .
Bolt
- Quantity: 2
- 2.5 Nm
Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
Cover
- For the towing eye
Rear Diffuser
- Removing and Installing. Refer to REAR DIFFUSER, REMOVING AND INSTALLING, RS Q8 .
Clip
- Quantity: 2
Spoiler
- Removing and Installing. Refer to SPOILER, REMOVING AND INSTALLING .
Bolt
- Quantity: 4
- 3 Nm
Trim Molding
- Center
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, RS Q8 .
Trim Molding
- Side
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, RS Q8 .
Clip
- Quantity: 15
Bolt
- Quantity: 4
- 2.5 Nm
End Panel
- Removing and Installing. Refer to END PANEL, REMOVING AND INSTALLING .
Clip
- Quantity: 5
Bolt
- Quantity: 3
- 3 Nm
Trim
- For the tail pipe
- Bolts: 3 Nm
- Removing and Installing. Refer to TAIL PIPE TRIM, REMOVING AND INSTALLING, RS Q8 .
Bolt
- Quantity: 2
- 2.5 Nm
Bumper Cover Mount
- Side
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, SIDE .
Bolt
- Quantity: 6
- Tightening sequence. Refer to Figure.
Bolt
- Quantity: 3
- Tightening sequence. Refer to Figure.
Bumper Cover Mount
- Upper
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, TOP .
Nut
- Quantity: 5
- 4 Nm
