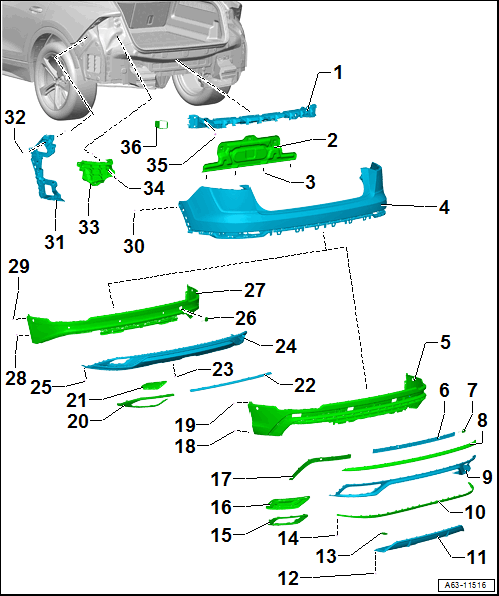

Overview - Bumper Cover, Q8
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Bumper Cover Mount
- Center
- Removing and Installing. Refer to CENTER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Bumper Cover Mount
- Lower
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
- Nuts: 6 Nm
- Pop Rivet Nut
- Quantity: 4
- Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Bumper Cover Lower Section
- Equipment versions: S-line
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
- Bumper Cover Trim
- Center
- Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, CENTER .
- Cover
- For the towing eye
- Bumper Cover Trim Molding
- Equipment versions: S-line
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, S LINE, SQ8 .
- Spoiler
- Removing and Installing. Refer to SPOILER, REMOVING AND INSTALLING .
- Spoiler
- Lower
- Removing and Installing. Refer to SPOILER, REMOVING AND INSTALLING .
- Rear Diffuser
- Removing and Installing. Refer to REAR DIFFUSER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- 3 Nm
- Power Rear Lid Opening Control Module -J938-
- Removing and Installing. Refer to Power Rear Lid Opening Control Module -J938-, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 2.5 Nm
- Bumper Cover Trim Molding
- Side
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, Q8 .
- End Panel
- For side bumper cover trim molding
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, Q8 .
- Bumper Cover Trim
- Side
- Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, SIDE .
- Bolt
- Quantity: 2
- 2.5 Nm
- Bolt
- Quantity: 2
- 2.5 Nm
- Bumper Cover Trim Molding
- Side
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, Q8 .
- End Panel
- For side bumper cover trim molding
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, Q8 .
- Bumper Cover Trim Molding
- Equipped on some models
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, Q8 .
- Bolt
- Quantity: 4
- 3 Nm
- Spoiler
- Removing and Installing. Refer to SPOILER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 2.5 Nm
- Cover
- For the towing eye
- Bumper Cover Lower Section
- Equipped on some models
- Tightening sequence
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 2.5 Nm
- Bolt
- Quantity: 2
- 2.5 Nm
- Bolt
- Quantity: 2
- 2.5 Nm
- Bumper Cover Mount
- Side
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, SIDE .
- Bolt
- Quantity: 6
- Tightening sequence. Refer to Fig 2.
- Bumper Cover Mount
- Upper
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, TOP .
- Bolt
- Quantity: 3
- Tightening sequence. Refer to Fig 3.
- Nut
- Quantity: 5
- 4 Nm
- Shield
- For Lane Change Assistance Control Module -J769-, Lane Change Assistance Control Module 2 -J770-
- Removing and Installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULE -J769- /LANE CHANGE ASSISTANCE CONTROL MODULE 2 -J770-, REMOVING AND INSTALLING
Side bumper cover mount - tightening specification and sequence
-- Tighten the bolts in sequence -1 through 6- to 3 Nm.
Upper bumper cover mount - tightening specification and sequence
-- Tighten the bolts in sequence -1, 2 and 3- to 3 Nm.
