Impact Member, Removing And Installing, Without Trailer Hitch: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

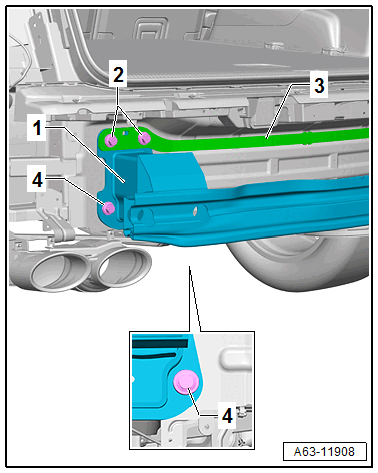

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the bolts -2-.
Vehicles with high-voltage system: remove the brace -3-.
-- Remove the bolts -4-.
-- Remove the impact member -1-.
